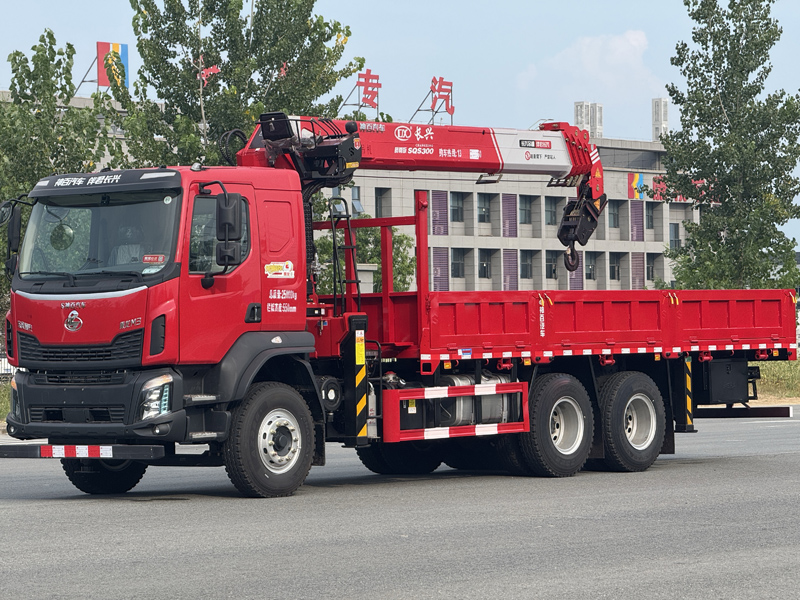

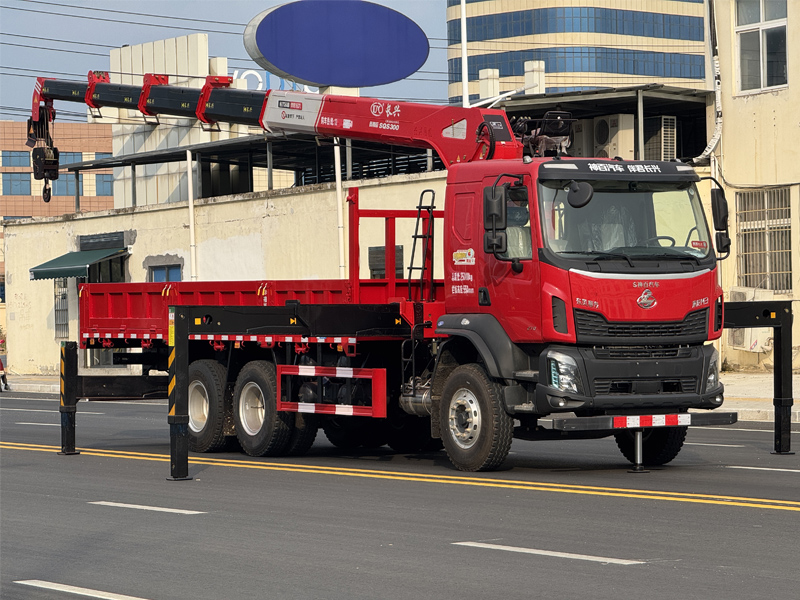

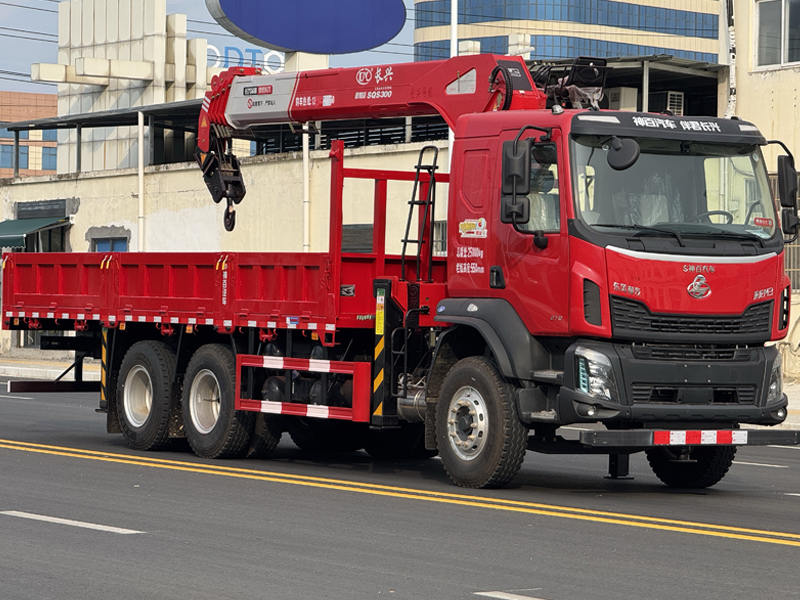

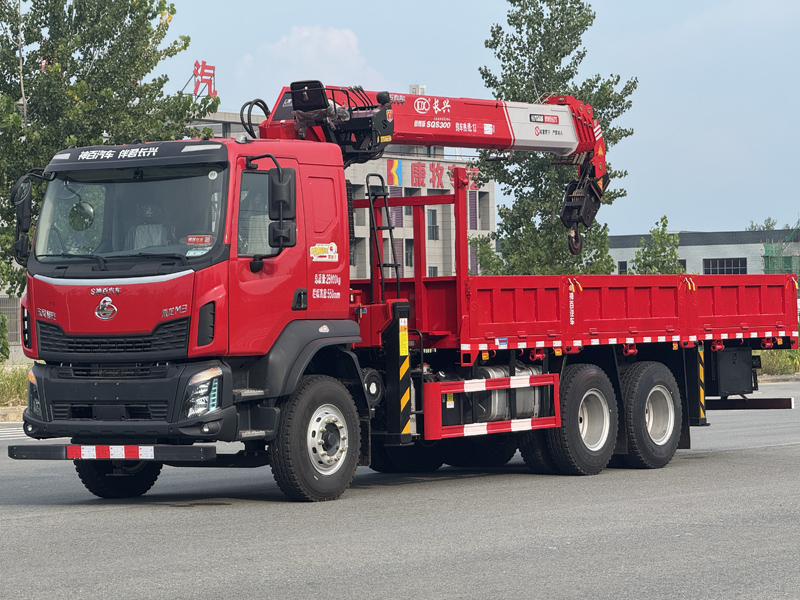

Liuzhou Chenglong M3 Short Wheelbase 6×4 Truck Mounted Crane

Compact 4350+1350 Wheelbase for Narrow Site Lifting & Transportation

LZ5250JSQH5DB Chenglong M3 short-wheelbase 6×4 truck mounted crane adopts compact 4350+1350mm wheelbase with shorter overall length and small turning radius, ideal for narrow residential blocks and construction sites. With 25-ton gross weight, it is powered by 270HP Yuchai National VI 6-cylinder engine matched with Fast 9-speed gearbox, equipped with 6.5t front axle and dual 13-ton wheel-reduction rear axles for stable load bearing. The reinforced frame and fully equipped M3 cab (AC, LCD dashboard, remote central lock) deliver comfortable operation. Compatible with 8~12-ton straight boom cranes of major brands, it features 360° full slewing and wide-span composite outriggers, widely used for construction material, nursery stock and municipal power emergency lifting & transport.
