Water Sprinkler

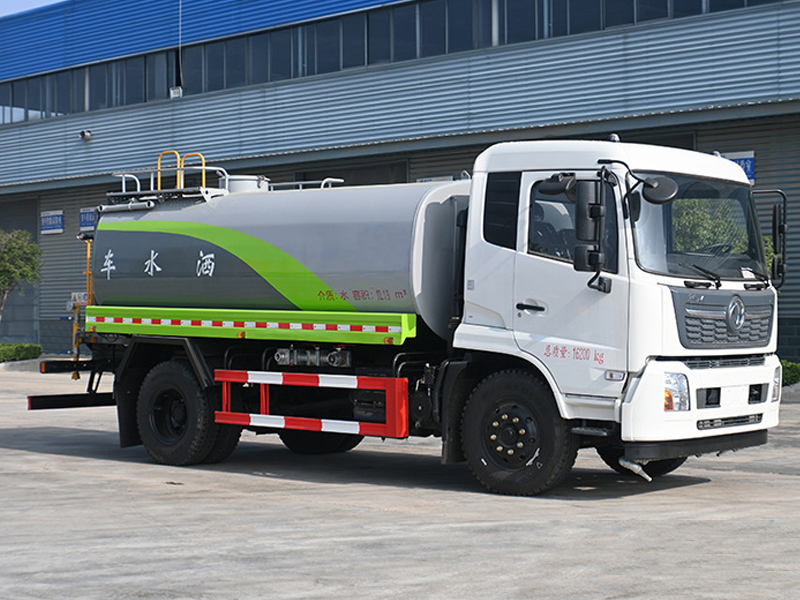

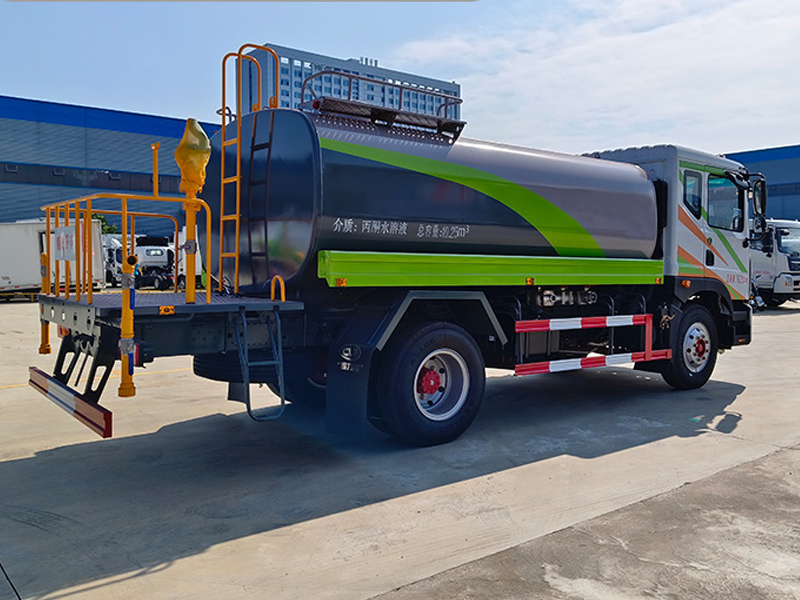

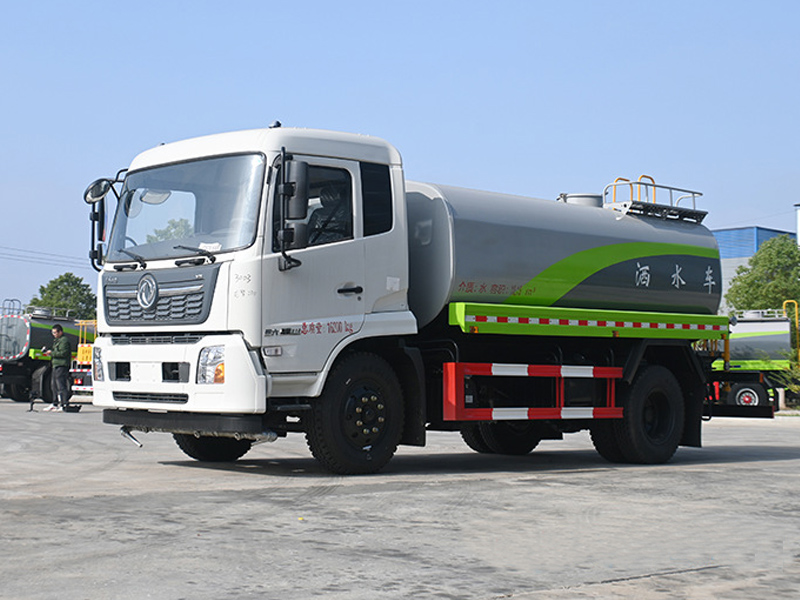

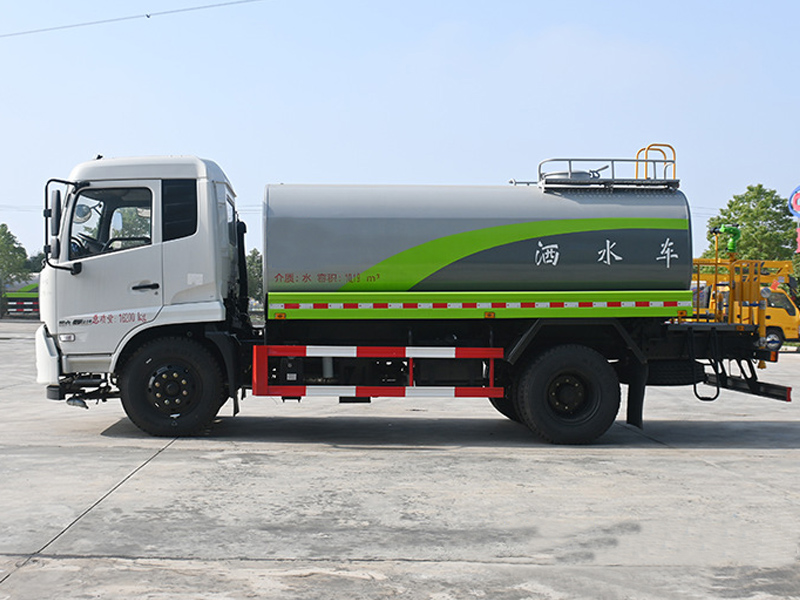

12m³ Dongfeng Green Sprinkler Truck
Dual Power Options, Special Water Truck for Municipal Garden & Road Dust Control
CL5163GPSD6 Dongfeng Kinland green sprinkler truck has an announced tank volume of 10.33m³ and actual effective volume up to 12.32m³ with strong loading capacity. Its gross vehicle weight reaches 16,200kg. Two power options are available: 195HP Dongfeng Cummins engine and 210HP Dragon Power DDi47 engine, both matched with Fast 8-speed transmission and 3950mm wheelbase.
Two chassis configurations for selection: Cummins version equipped with shock-absorbing seat and factory air conditioner; Dragon Power version upgraded with air suspension seat, multi-functional steering wheel and electronic central lock. The large tank is widely used for garden irrigation, road dust suppression, sanitation watering and construction site dust control.
Technical specifications
| Vehicle Name | Green Sprinkler Truck |
| Vehicle Model | CL5163GPSD6 |
| Chassis Model | DFH1160BX1 |
| Gross Vehicle Weight | 16200kg |
| Curb Weight | 6650kg |
| Rated Payload | 9420kg / 9355kg |
| Wheelbase | 3950mm |
| Tank Volume | 12m³ |
| Overall Dimensions | 7880 / 8480 × 2520 × 3250 mm |
| Engine Model | D4.0NS6B195 |
| Displacement (L) | 4000cc(4.0L) |
| Power (kW) | 143 |
| HP | 195 |
