Garbage Truck

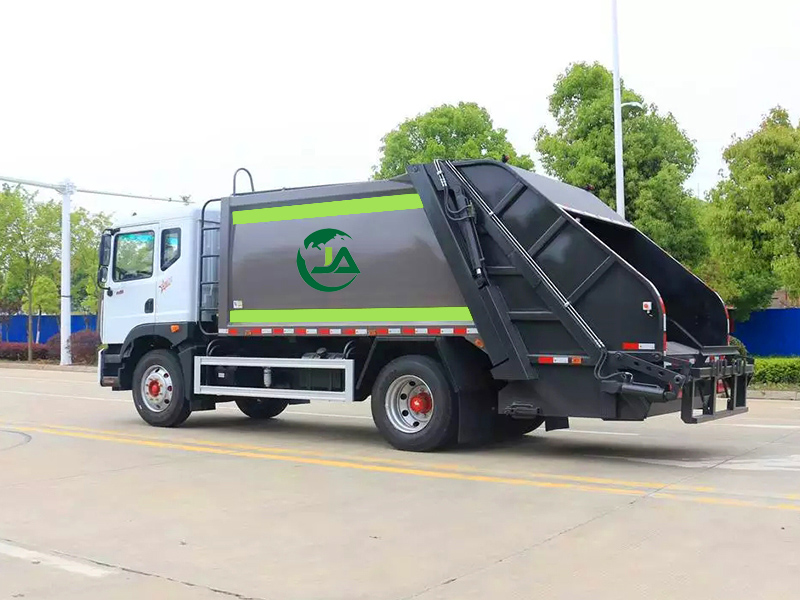

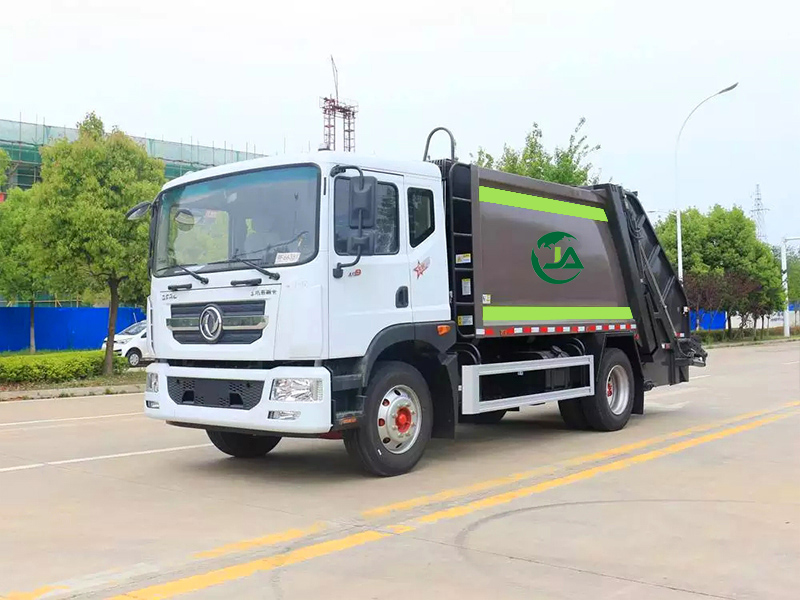

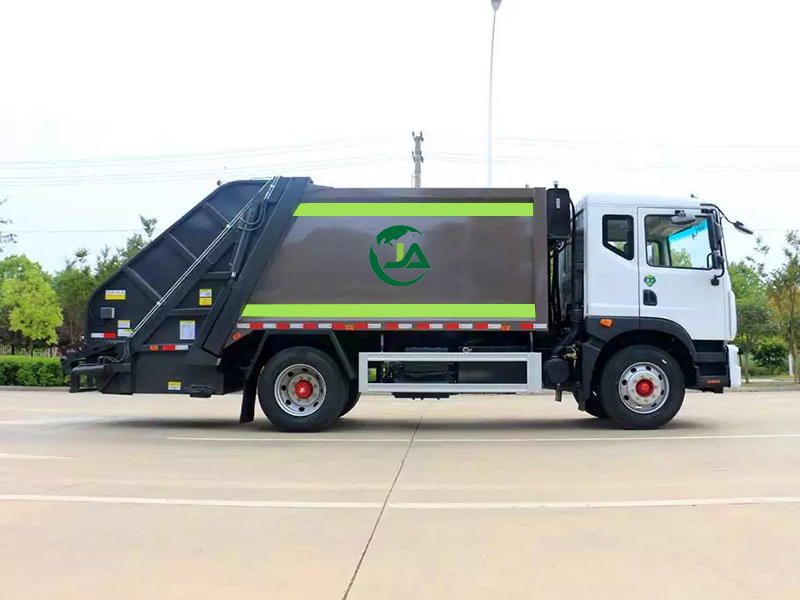

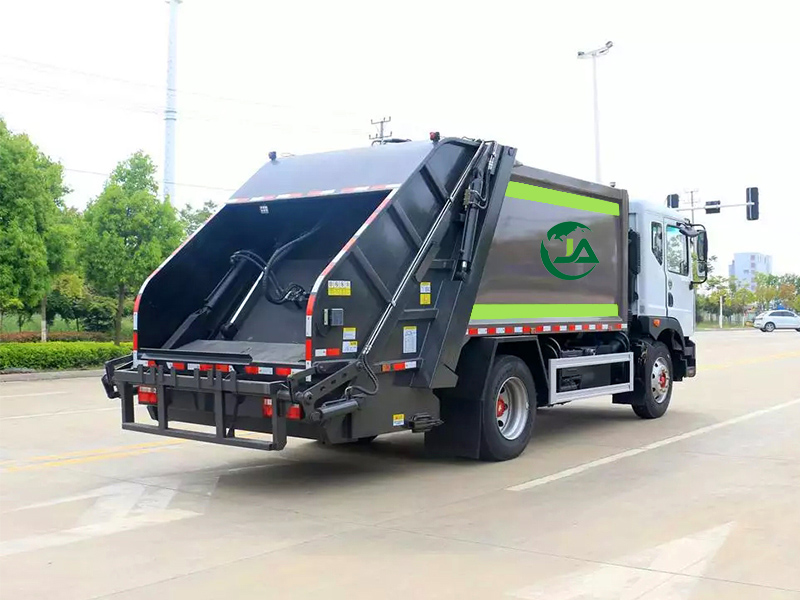

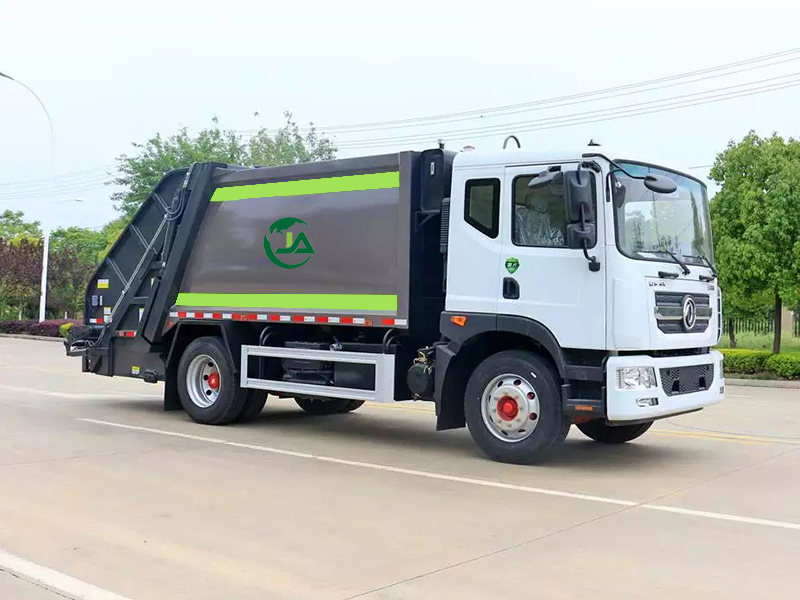

Dongfeng Dolica D9 14CBM Rear Loader Garbage Compactor Truck
National VI Sanitation Waste Transport Vehicle | High Compaction Ratio Sealed Leak-Free Municipal Refuse Collection Truck
This truck adopts mature Dongfeng D9 4×2 sanitation chassis, equipped with 14 cubic meters high-strength manganese steel sealed compaction bin with compression ratio up to 1:0.75, featuring large loading capacity & fewer transport trips. It is fitted with imported CAN bus intelligent electric control system, supporting automatic/manual/remote triple operation modes. Standard rear double 240L bin lifting mechanism, dual sewage tanks for full leak-proof sealing to avoid secondary pollution. Widely used for domestic waste collection & transportation in urban roads, residential communities, towns and industrial parks. Certified with CCC, ISO, CE, meeting National VI emission standard, durable and easy to maintain.
Technical specifications
| Chassis Model | EQ1185LJ9CDE |
| Drive Type | 4×2 2-wheel Drive |
| Engine | Yuchai 200HP / Cummins 240HP (Optional) |
| Emission Standard | National VI GB17691-2018 (Euro VI Equivalent) |
| GVW (Gross Vehicle Weight) | 18000kg |
| Overall Dimension | 8750×2500×3200mm |
| Bin Effective Volume | 14 Cubic Meters (14000L) |
| Rated Payload | 8200kg |
| Max Speed | 105km/h |
| Braking System | Air Brake + Spring Brake + ABS |
| Compaction Ratio | 1:0.75 |
