Garbage Truck

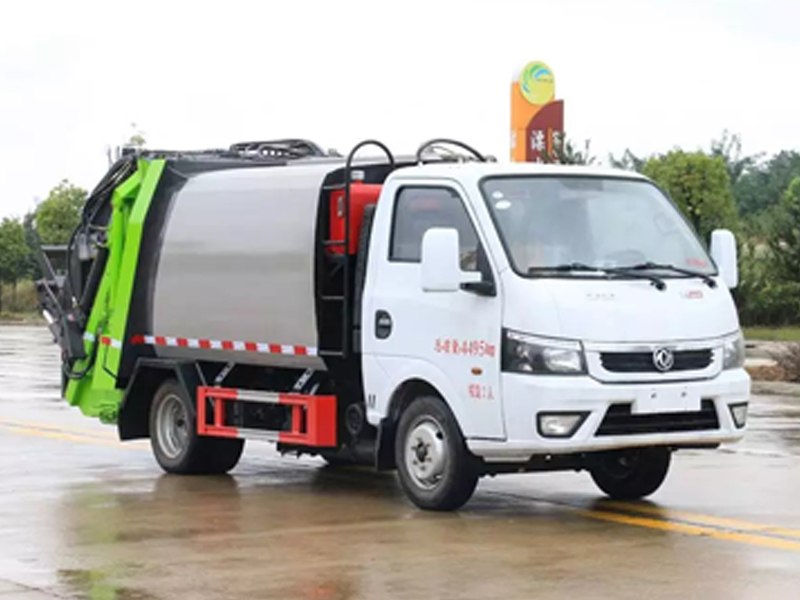

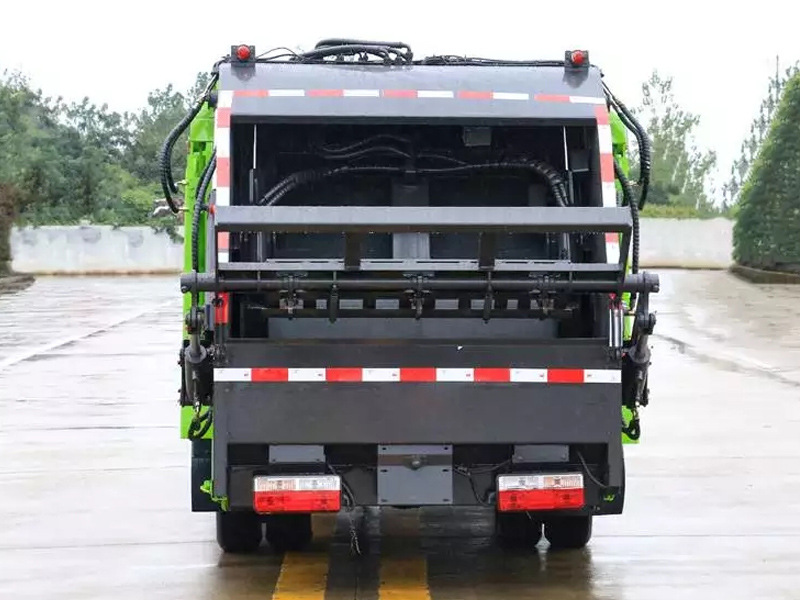

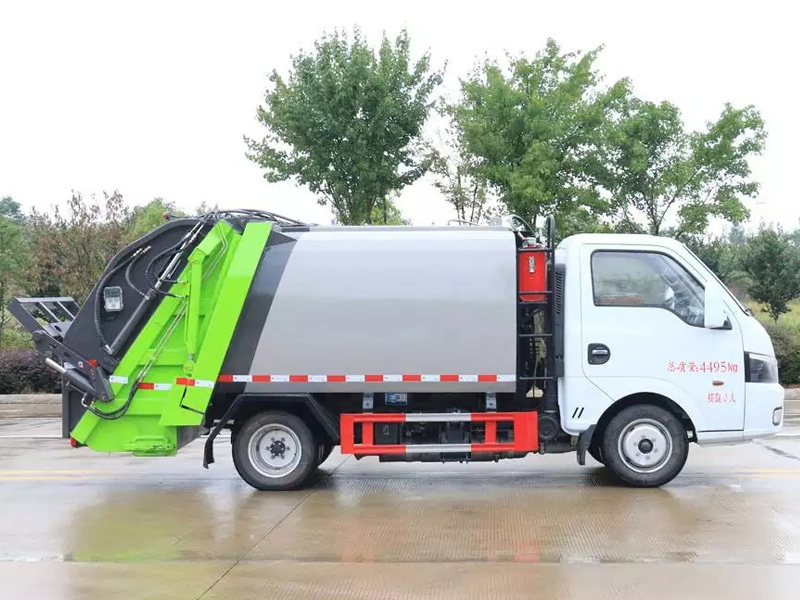

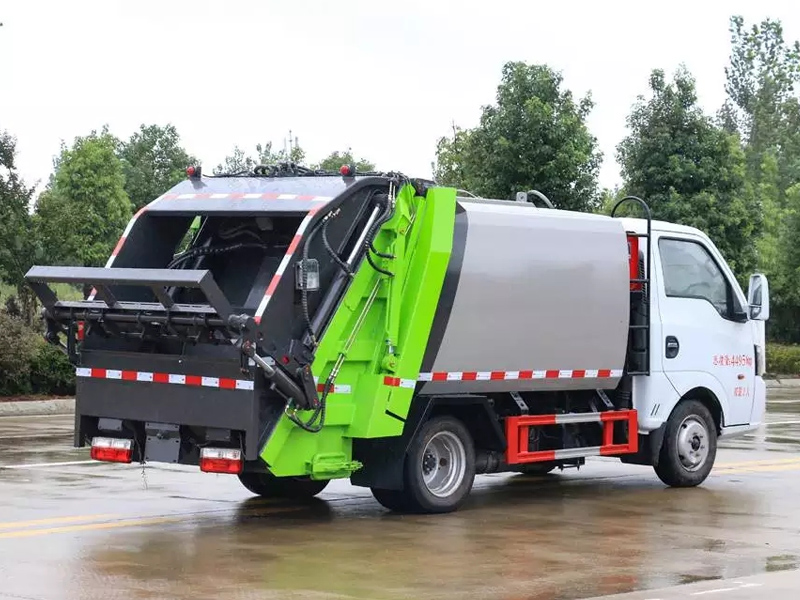

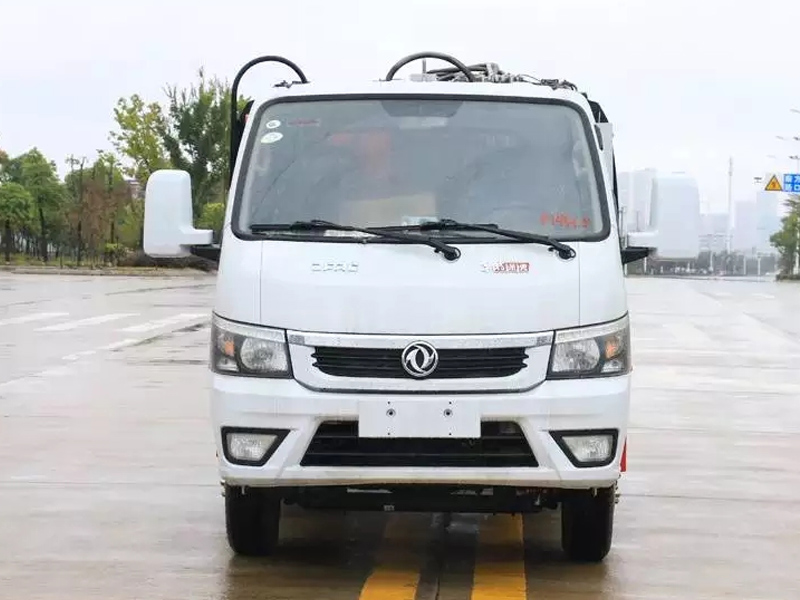

Dongfeng Tuyi 4CBM Rear Compression Garbage Truck

Low Clearance & Narrow Road Adaptable | Sealed Municipal Waste Collection Vehicle
The Dongfeng Tuyi 4CBM blue-plate compression garbage truck is a compliant National VI light-duty sanitation vehicle. Featuring an ultra-compact body and low overall height, it freely passes through underground garages, narrow community roads and urban branch lanes, and can be driven with a C1 driving license with full urban accessibility. Equipped with a lightweight high-strength manganese steel fully sealed bin and an intelligent hydraulic compression system, the truck delivers high compaction density and large loading capacity, greatly improving waste transportation efficiency and reducing operation frequency. The fully enclosed design matched with a dual sewage collection system completely avoids garbage exposure, sewage leakage and odor emission, eliminating secondary environmental pollution. Adopting automatic, manual and remote triple control modes, the vehicle realizes labor-saving and stable operation with low failure rate. It is widely applicable for domestic waste collection in residential communities, scenic spots, industrial parks, urban streets and commercial areas. With low fuel consumption and maintenance cost, it is an ideal equipment for refined urban sanitation operations.
Technical specifications
Chassis Model EQ1045SJ16DC
Complete Vehicle Model CL5042ZYS6HQ
Bin Effective Volume 4 m³
Compaction Ratio 1:0.7
Hopper Volume 0.8 CBM
Overall Dimension 5995×1900×2280mm
Kerb Weight 3865kg
Rated Payload 500kgs
Emission Standard National VI (Euro VI Equivalent)
Front/Rear Axle 1.5 Ton Front / 3 Ton Rear Axle
Wheelbase 2800mm
