Road Sweeper
New Energy Pure Electric Sweeper & Cleaner Truck
Full-road Washing & Dust Control Green Sanitation Equipment

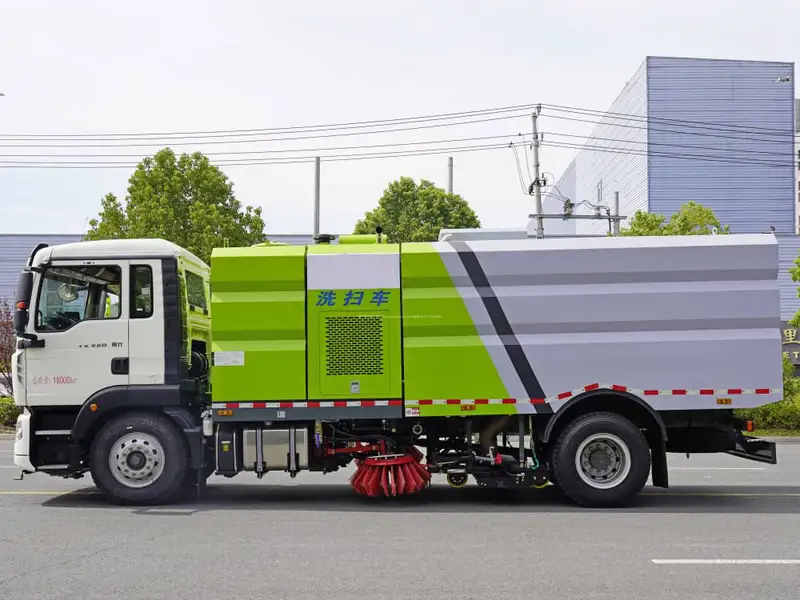

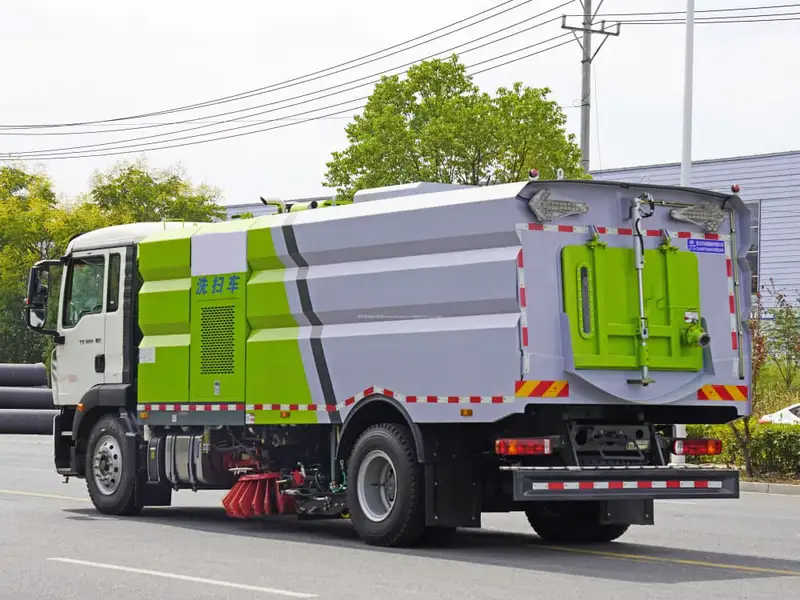

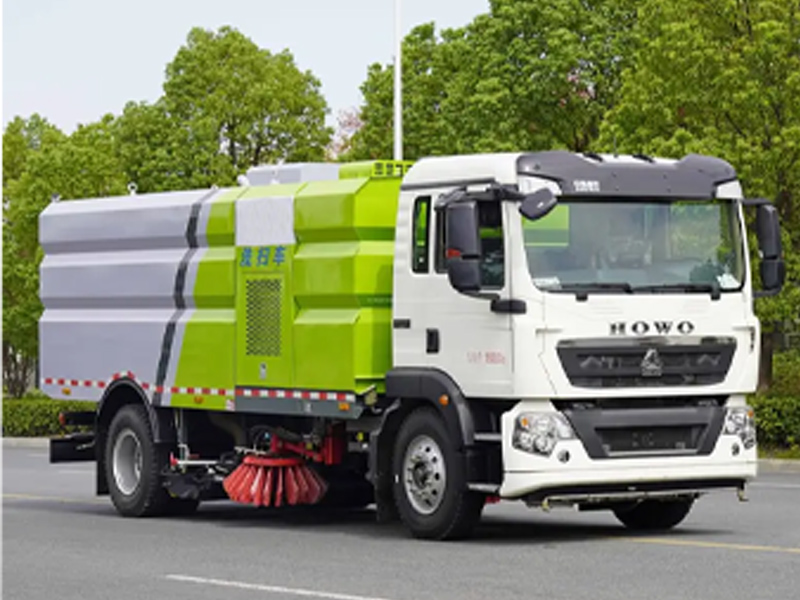

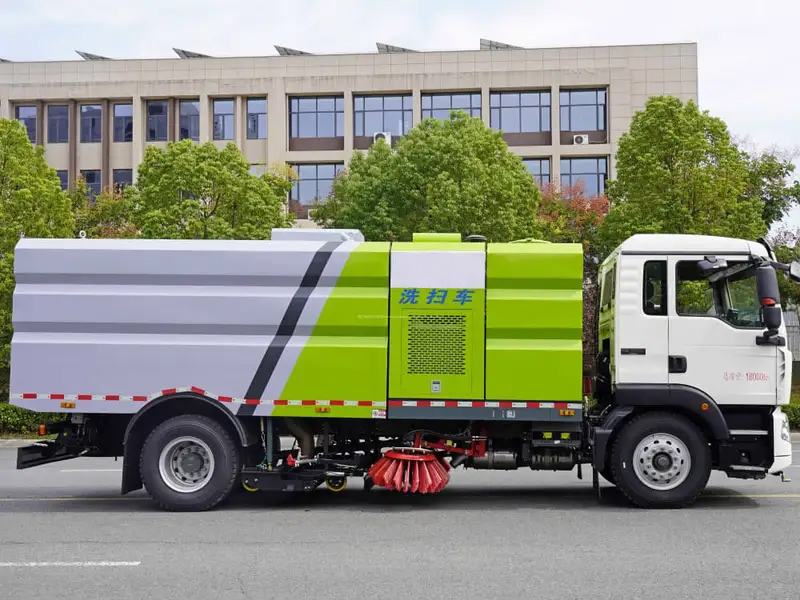

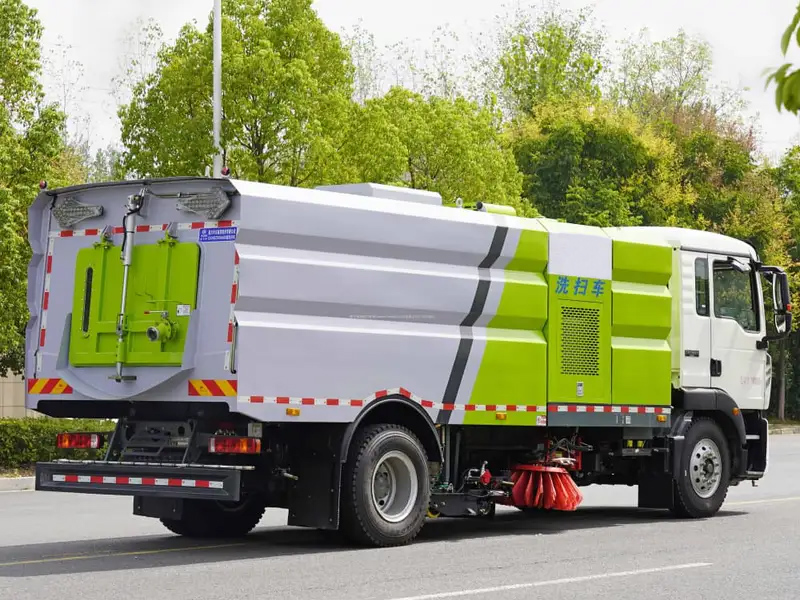

CL5182TXS6AGX road sweeper adopts Sinotruk ZZ1187K501GF1 chassis, with optional Weichai and Sinotruk engines up to 320HP. It combines sweeping, vacuum cleaning and sprinkling functions for urban roads, industrial parks and highway maintenance.
The Q235 carbon steel rear underrun guard with 490mm ground clearance offers reliable anti-collision protection. Wheelbase options include 4700mm and 5000mm for stable running. With 18-ton gross weight, multiple tire options and National VI diesel emission standard, the cab holds 2–3 front passengers and various rated payloads to fit diverse cleaning scenarios.
Technical specifications
| Overall Dimensions (mm) | 8620, 8520, 8220 × 2500 × 3265, 3180 |
| Gross Vehicle Weight | 18000kg |
| Rated Payload (kg) | 4920, 4855, 5570, 5505, 6200, 6135 |
| Curb Weight (kg) | 12950, 12300, 11670 |
| Front Seating Capacity | 2 / 3 persons |
| Wheelbase | 4700mm, 5000mm |
| Tire Specs | 295/80R22.5 18PR, 12R22.5 18PR, 11.00R20 18PR, 10.00R20 18PR |
| Number of Tires | 6 |
| Fuel Type | Diesel |
| Emission Standard | National VI (GB17691-2018) |
| Engine Model | WP7H245E62 |
