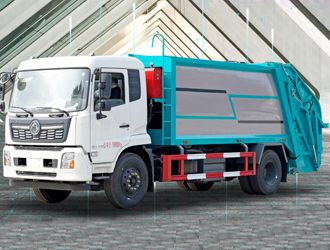

Dongfeng Tianjin 16m³ China VI Compressed Garbage Truck

Robust, High‑Capacity Refuse Collector with Advanced Compression & Smart Control

The Dongfeng Tianjin 16‑cubic‑meter Compressed Garbage Truck is a Euro‑VI (China VI) compliant heavy‑duty vehicle built on the proven DFH1180EX8 chassis. It combines a powerful Cummins 230 HP engine (optional 190–230 HP) with an 8‑speed Fast gearbox and a reinforced 250 mm double‑layer frame, ensuring durability and excellent fuel efficiency even under full loads. Key features: High‑strength steel body (Q345/Q355, side 4 mm / bottom 5 mm) with a 16 m³ sealed hopper and a compression ratio ≥ 3:1 – maximises payload while minimising trips. Intelligent hydraulic system with branded pumps and valves, offering manual / semi‑auto / fully automatic operation modes via cab‑side, side panel, or wireless remote control. Large‑capacity sewage tanks (side and rear) prevent leakage and secondary pollution. Flexible loading options – standard flip‑bucket mechanism, with optional swing‑arm, large hopper, or triangular bucket to suit different collection methods. Advanced PLC / CAN‑bus electronic control with one‑button discharge and photoelectric sensors available on higher specs. With a GVW of 18,000 kg and an optional wheelbase of 4500/4700/5000 mm, this truck delivers outstanding manoeuvrability and stability for municipal, industrial, and residential waste collection.
