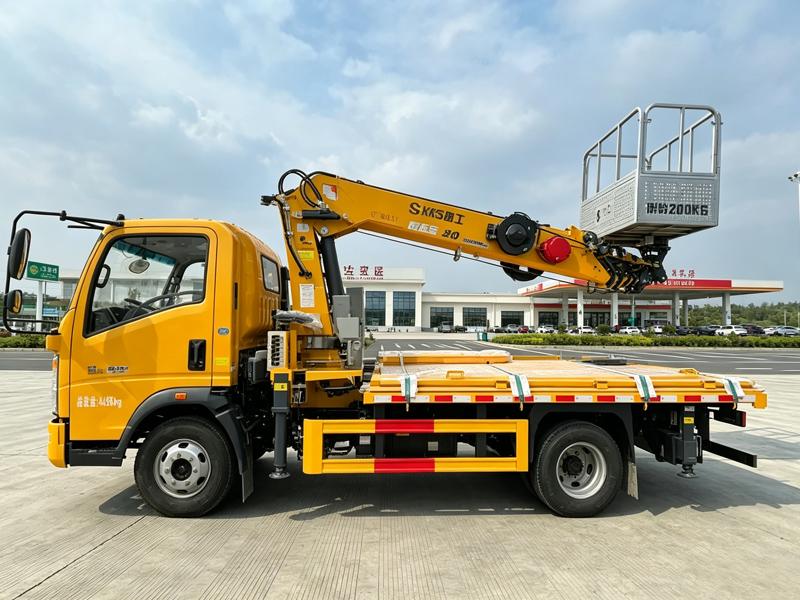

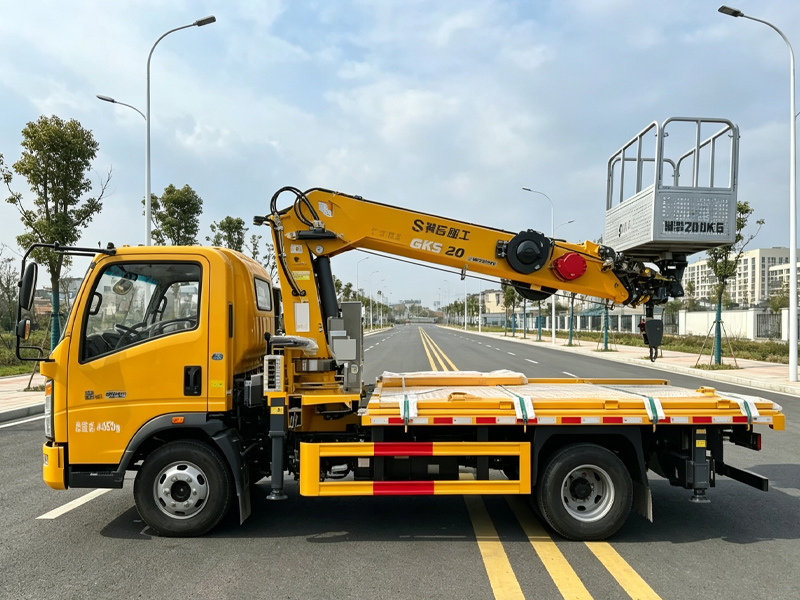

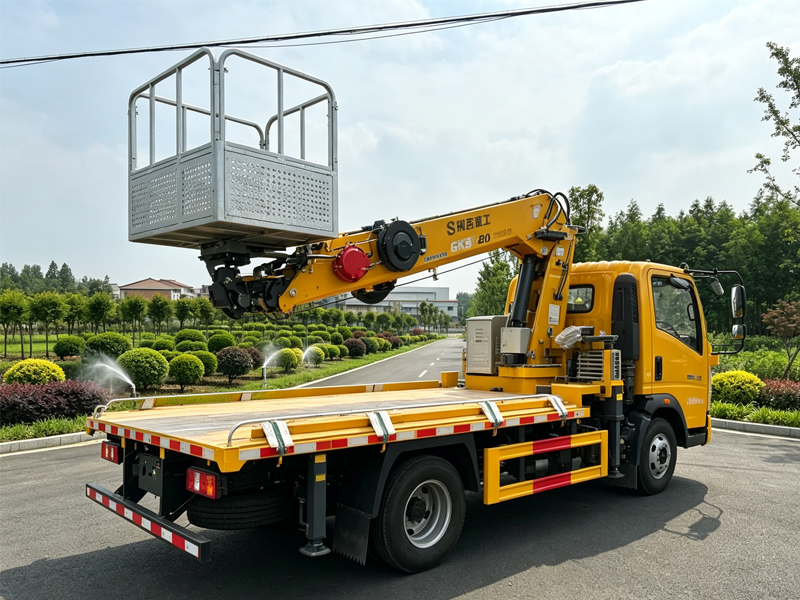

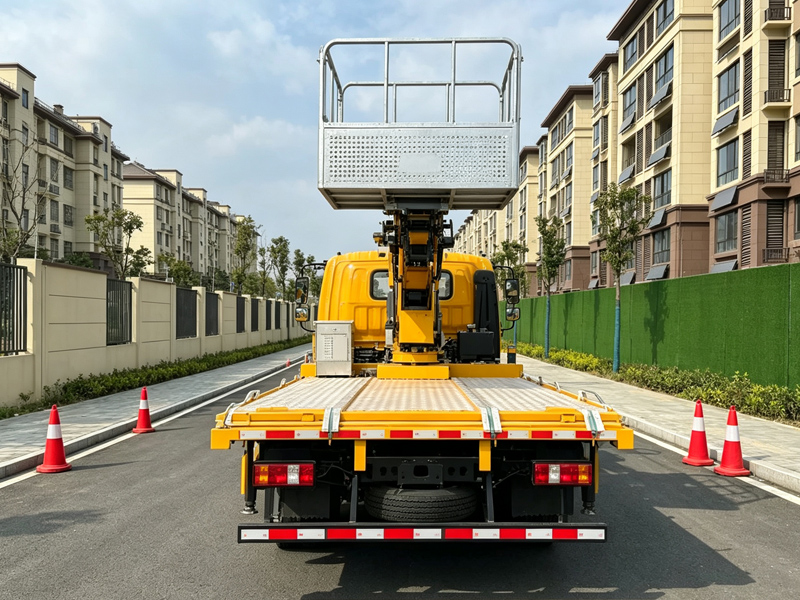

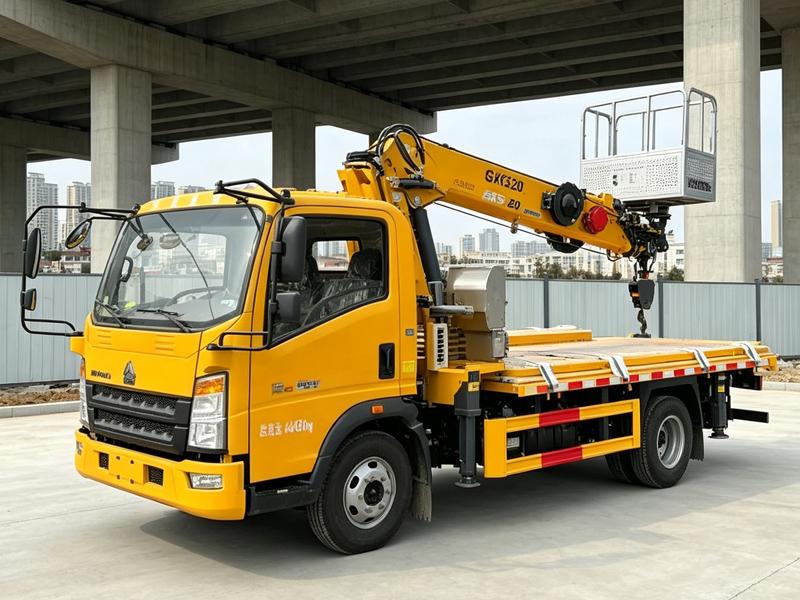

Sinotruk Howo 140HP 20m 3-in-1 Aerial Work Vehicle (4495kg Blue Plate), Multi-Functional Truck for Aerial Operation, Crane Lifting & Cargo Transport

3-In-1 Engineering Solution Drivable with C1 License | Integrates 20m Aerial Work, 5T Lifting & Cargo Haulage, Ideal for Gardening, Power Maintenance & Installation Works

This 3-in-1 multi-functional aerial work vehicle adopts Sinotruk Howo light chassis with 4495kg legal blue-plate GVW, operable with C1 driving license without urban traffic restriction. Equipped with Weichai 140HP diesel engine and WLY 6/8-speed long oil-change transmission with 120,000km service interval to cut maintenance cost. The overall length of 5998mm enables smooth passage through underground garages and narrow residential lanes. The superstructure model GK200 integrates three core functions: 20m aerial work platform, 5-ton truck-mounted crane and 3.3m cargo box, replacing three separate engineering vehicles and greatly reducing procurement & operation expenses. The aerial work unit features 6-section synchronous telescopic boom with 360° full rotation, the work platform can rotate ±180° with rated load of 200kg, equipped with spare steel wire rope for emergency descent protection. The lifting unit provides max 5-ton lifting capacity and 17m lifting height via 6-section inner-rope boom with full 360° slewing. Independent adjustable H-type outriggers with 5150mm transverse span ensure stable operation against tipping. Adopting electro-hydraulic proportional valve for stepless speed regulation, dual operation modes including central cab control and wireless remote control. Multiple safety devices such as interlock between cab and platform, dual hydraulic balance valves are equipped. Standard cold & warm air conditioner, power windows and other comfortable interior fittings. Widely used for power emergency repair, street lamp maintenance, garden pruning, exterior wall installation and small building material hoisting & delivery. Fully certified for nationwide blue-plate registration, customizable superstructure configurations available.
