Snow Plow
National VI Sinotruk Sitrak C5H 6×4 Multi-Functional Snow Removal Truck, Interchangeable Front Snow Plow & Rotary Sweeper + Rear 10CBM De-Icer Spreader with Self-Dumping Cargo Box
25-Ton Heavy-Duty Long-Distance Snow Clearing Solution | 4-in-1 Functions of Snow Pushing, Sweeping, De-Icing & Self-Dumping, Special Large Sanitation Vehicle for Expressways, Airports & Urban Arterial Roads
This vehicle adopts National VI Sinotruk Sitrak C5H-M single-and-a-half cab 6×4 heavy-duty chassis, equipped with German MAN MC07.31-60 310HP National VI diesel engine and Sinotruk 10-speed transmission with flange PTO, delivering sufficient power reserve for continuous long-distance snow removal on expressways and airports.
The chassis is configured with 5-ton drum front axle and dual 10-ton stamped welded rear axles, matched with 8+5mm double-layer 280mm high-strength frame, imported ZF steering gear and 4S/4M four-channel ABS braking system for strong load capacity and stable safe driving. Standard factory air conditioner, driving recorder and multi-function steering wheel are equipped; optional 300L large fuel tank, front underrun protection and Sinotruk Intelligent Connect A version are available for comfortable long-shift operation.

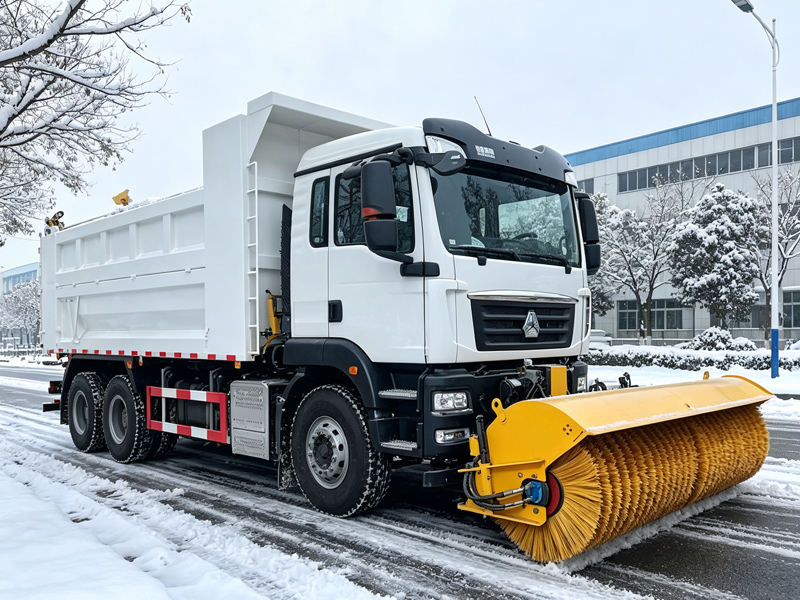

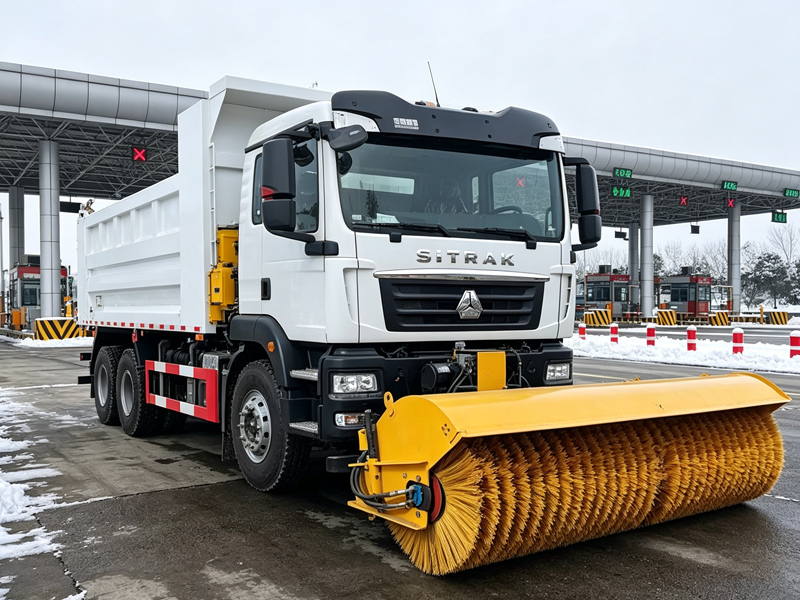

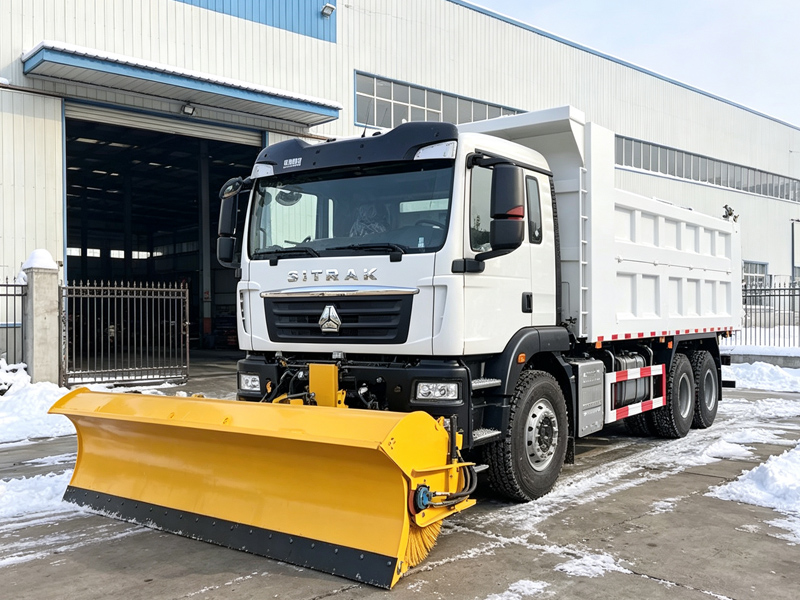

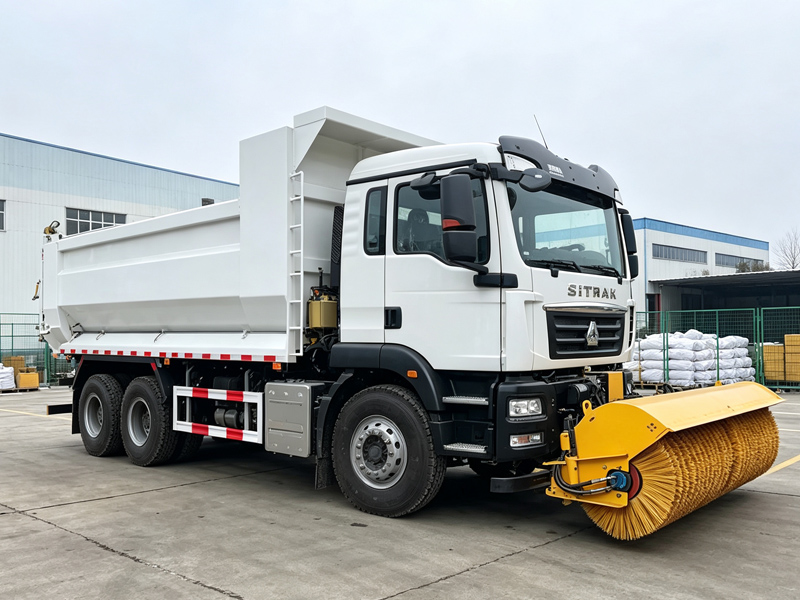

The superstructure is fitted with interchangeable front attachments: 3.5m heavy-duty snow plow and 3.5m wear-resistant rotary sweeper, which can be quickly swapped via universal quick connectors to adapt to thin and thick snow conditions. A 10 cubic meter large-capacity de-icer spreader is mounted at the rear to evenly spread de-icing agent with variable frequency control. All snow removal attachments can be rapidly disassembled entirely, after disassembly the self-dumping cargo box can serve as a waste tipper for earthwork and building material transportation, realizing multi-purpose single vehicle and cutting idle equipment procurement cost.
It is widely applied for large-area long-distance ice & snow clearing on urban arterial roads, plazas, expressways, ring roads and airport runways, performing stably and durably under severe cold weather. Officially certified for nationwide registration, customized size of snow plow, sweeper and spreader tank volume are available.
Technical specifications
| Chassis Model | Sinotruk Sitrak C5H-M 6×4 Twin Rear Axle |
| Engine | MC07.31-60 MAN Technology 310HP National VI Diesel Engine |
| Transmission | HW19710 Sinotruk 10-Speed Manual Gearbox |
| Front Axle | H153 Self-Adjusting Arm 5 Ton Drum Front Axle |
| Front Attachment 1 | 3.5m Hydraulic Heavy-Duty Snow Plow |
| Rear De-Icer Spreader Volume | 10 Cubic Meters |
| Emission Standard | National VI (Euro VI Equivalent) |
| Tire Spec | 11.00R20 Steel Wire Tire |
