Crane Truck

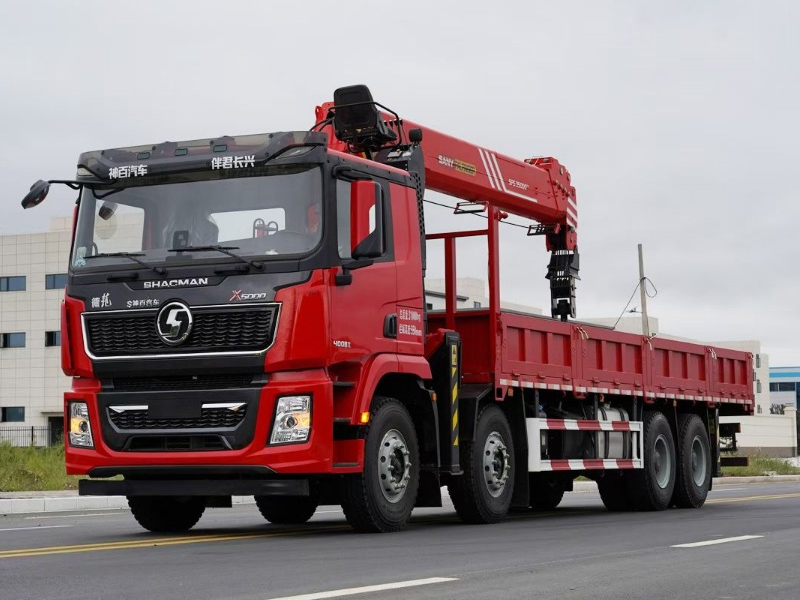

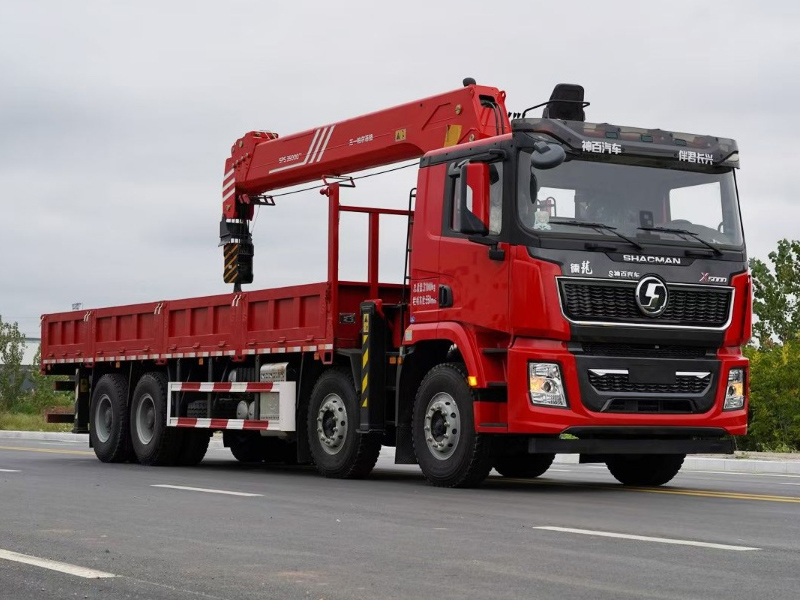

Shacman Delong X5000 8×4 Truck Mounted Crane
Cummins 400HP, Sany 20Ton 5-section Telescopic Boom
The ABC5319JSQSX6 Shacman Delong X5000 8×4 truck mounted crane is a heavy-duty 31-ton lifting transport vehicle. Powered by National VI Cummins 400HP engine and Fast 12-speed transmission, it delivers strong torque and heavy load capacity. Equipped with 7.5t front axle and 16t wheel reduction rear axle, standard dual differential locks greatly improve cross-country performance on construction sites.

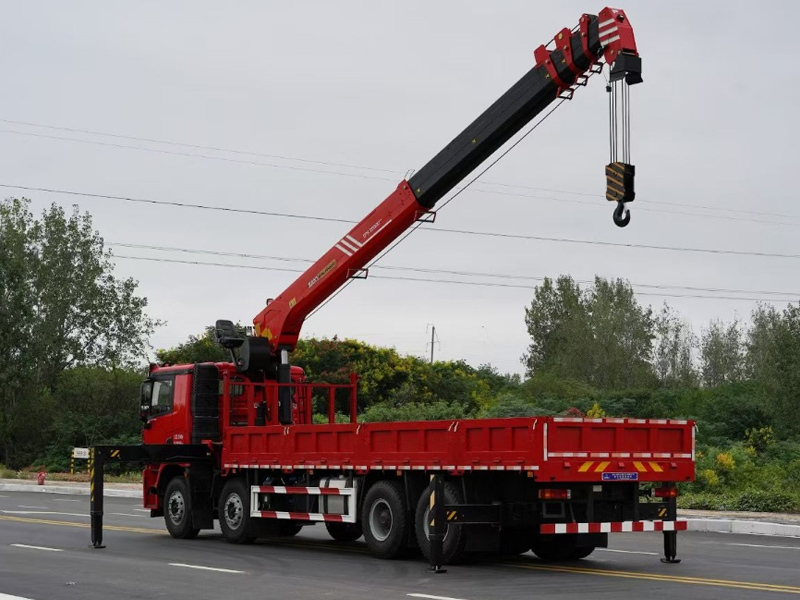

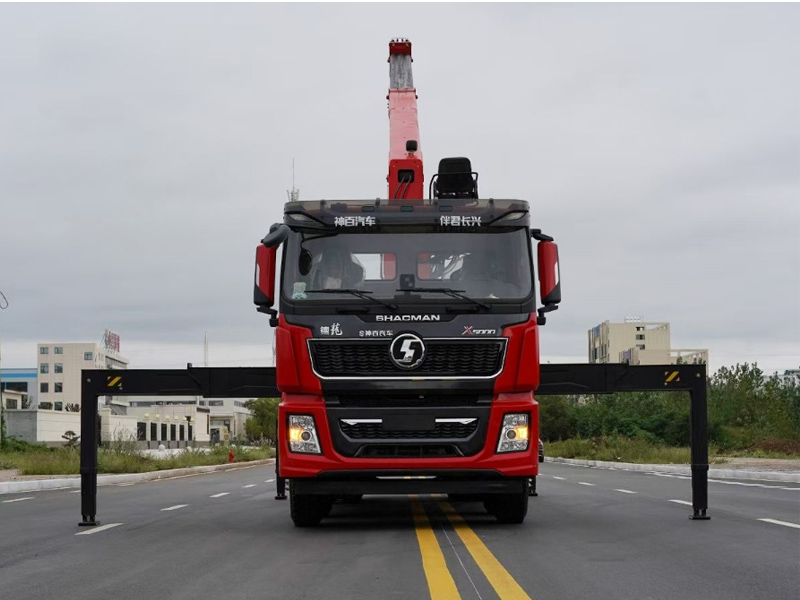

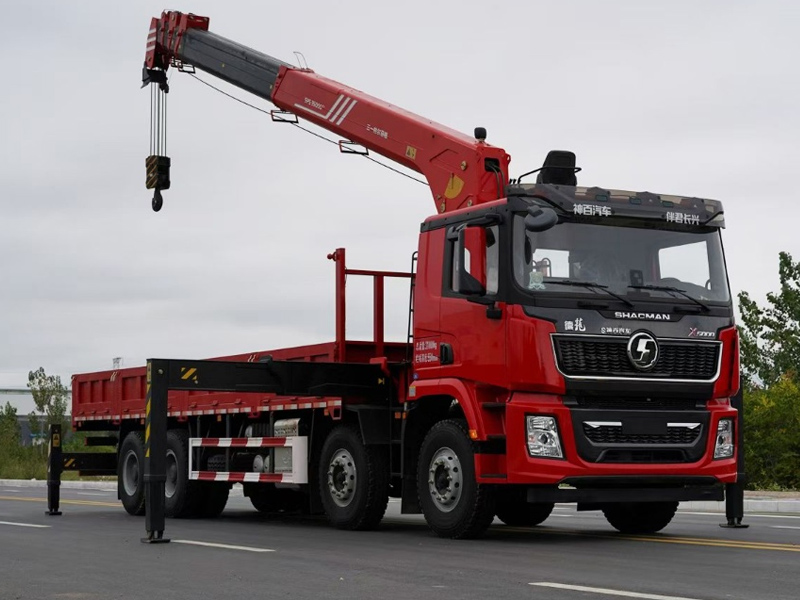

It is fitted with Sany 20-ton 5-section telescopic crane, featuring 21.5m boom length and max lifting height of 23.5m. Double front outriggers and hydraulic radiator ensure stable lifting with top seat control. The cab comes with 4-point air suspension seat, factory AC and LCD dashboard for long-distance comfort. Widely applied for infrastructure construction, steel, nursery stock and mine material hoisting & delivery.
Technical specifications
| Vehicle Model | ABC5319JSQSX6 |
| Chassis Model | SX1319MC6Z2 |
| Wheelbase | 2100+4575+1400mm |
| Gross Vehicle Weight | 31000KG |
| Curb Weight | 20200Kg / 20800kg |
| Cargo Box Dimension | 7800~8500 × 550(600)mm |
| Engine | National VI Cummins M8.5NS6B400, 400HP |
| Transmission | Fast 12-speed gearbox with synchronizer, high/low range shift |
| Front/Rear Axle | 7.5t front axle / 16t wheel reduction rear axle |
| Boom Length | 21.5m |
| Max Lifting Height | 23.5m |
